HD 1080P AHD Infrared Vehicle Mounted Camera for School Bus , Wide View Angle

Name: HD 1080P AHD Infrared Vehicle Mounted Camera for School Bus Wide View Angle
Brand: RECODA
Price: 1 USD

Brand Name : RECODA

Model Number : CM02-AHD

Certification : CE, FCC

Place of Origin : Guangdong, China

MOQ : 1

Supply Ability : 2000pcs per month

Delivery Time : 3-5days after receiving your payment

Packaging Details : one pcs per box, fifty pcs per carton

Resoltion : 1.3MP ( 1280(H)*960(V) )

Material : Metal

Pick up Device : 1/3” CMOS Sensor AR0130

Infrared LED : 12 LEDs

Infrared LED Range : 8 m

Lens : Standard f3.6mm Fixed Megapixel Lens

S/N Ratio : More than 48 dB, (AGC Off)

Back Light Compensation : Auto

Power Consumption : 170mA

Power Supply : 12V DC ±10%

Net Weight : 203g

Dimensions(L x W x H) : 76.4 x 60.5 x 56mm

Price : negotiation

Contact Now

Wide Angle Side View HD 1080P AHD Infrared School Bus Vehicle Mounted Camera

Main Features:

1) Resolution: 1.3 / 2 Megapixel

2) Lens:3.6mm

3) Min illumination:0Lux (LED ON)

4) IR LED:12pcs

5) Night Vision Distance: 8M

6) Waterproof: IP67

7) Voltage: 12V

Specifications:

Model	CM02-AHD ,1.3MP	CM02-AHD ,2MP
Type	Side view bus camera
Pick up Device	1/3” CMOS Sensor AR0130	1/2.8 Sony IMX222
TV System	PAL / NTSC
Picture Elements	1280(H)*960(V)	1920H x 1080 V
Effective pixels	1.3M Pixels	2M Pixels
Day-night mode	External control (default) / Auto / color / black and white
Infrared Spectrum	850nm	850nm or 940 nm
S/N Ratio	More than 48 dB, (AGC Off)	More than 50 dB, (AGC Off)
Auto Gain Control	Auto
White Balance	Auto
Electronic Shutter	AUTO/ 1/50(1/60)-1/100,000sec	Auto
Back/Light Compensation	Auto
Infrared LED	12 LEDs
Infrared LED Range	8 m
Video output	1 Vp-p, 75Ωcomposite ,4 ways Din jack x1	AHD 1 Vp-p, 75Ω,
Audio Output	N/A
Mirror	N/A
Power Consumption	170mA	160 mA
Lens	Standard f3.6mm Fixed Megapixel Lens
Lens Mount	M12XP0.5mm Thread
Video footage to take up space	1min≈32MB
Power Supply	12V DC ±10%	12V DC (9V~18V)
Dimensions(L x W x H)	76.4 x 60.5 x 56mm
Net Weight	203g	215 g
Weatherproof	IP67
Operating Temperature	-10°C to +50°C	-25°C to +60°C

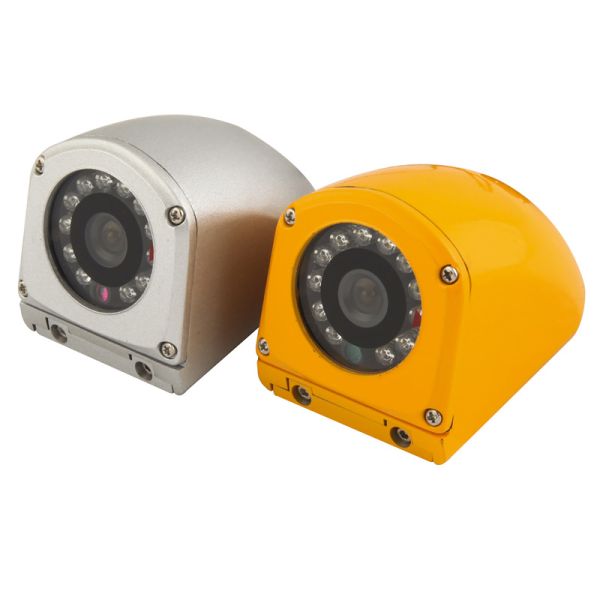

Products' Picture:

HD 1080P AHD Infrared Vehicle Mounted Camera for School Bus , Wide View Angle

Packing list:

Camera 1

Instruction Manual 1

Self Drilling Screw 3

Mounting Plug 3

Hex-key 1

Optional Lens selectable from f2.9mm to f12mm

Operation procedures:

HD 1080P AHD Infrared Vehicle Mounted Camera for School Bus , Wide View Angle

1. Loosen the lock screws (3) by applied hex key, remove the mounting base (2) from the camera (1).

2. Attach the mounting base (1) to the wall or ceiling, wherever you want to install the camera. Locate a wall stud or ceiling joint and secure the base by the supplied mounting screws (4).

3. Connect the 4 ways male din jack to the female jack on the cable, when picture shown up on the monitor.

4. Fix the camera on the mounting plate.
